Web Application

Overview​

The Web Application L3 construct provides a comprehensive solution for deploying static Web Application with global content delivery and enterprise-grade security. The system offers a streamlined approach to hosting modern Web Application, from simple static sites to complex Single Page Applications (SPAs).

The construct handles the complete deployment pipeline: building your application, uploading assets to secure storage, and distributing content globally through a Content Distrbution Network (CDN) with automatic HTTPS and security headers.

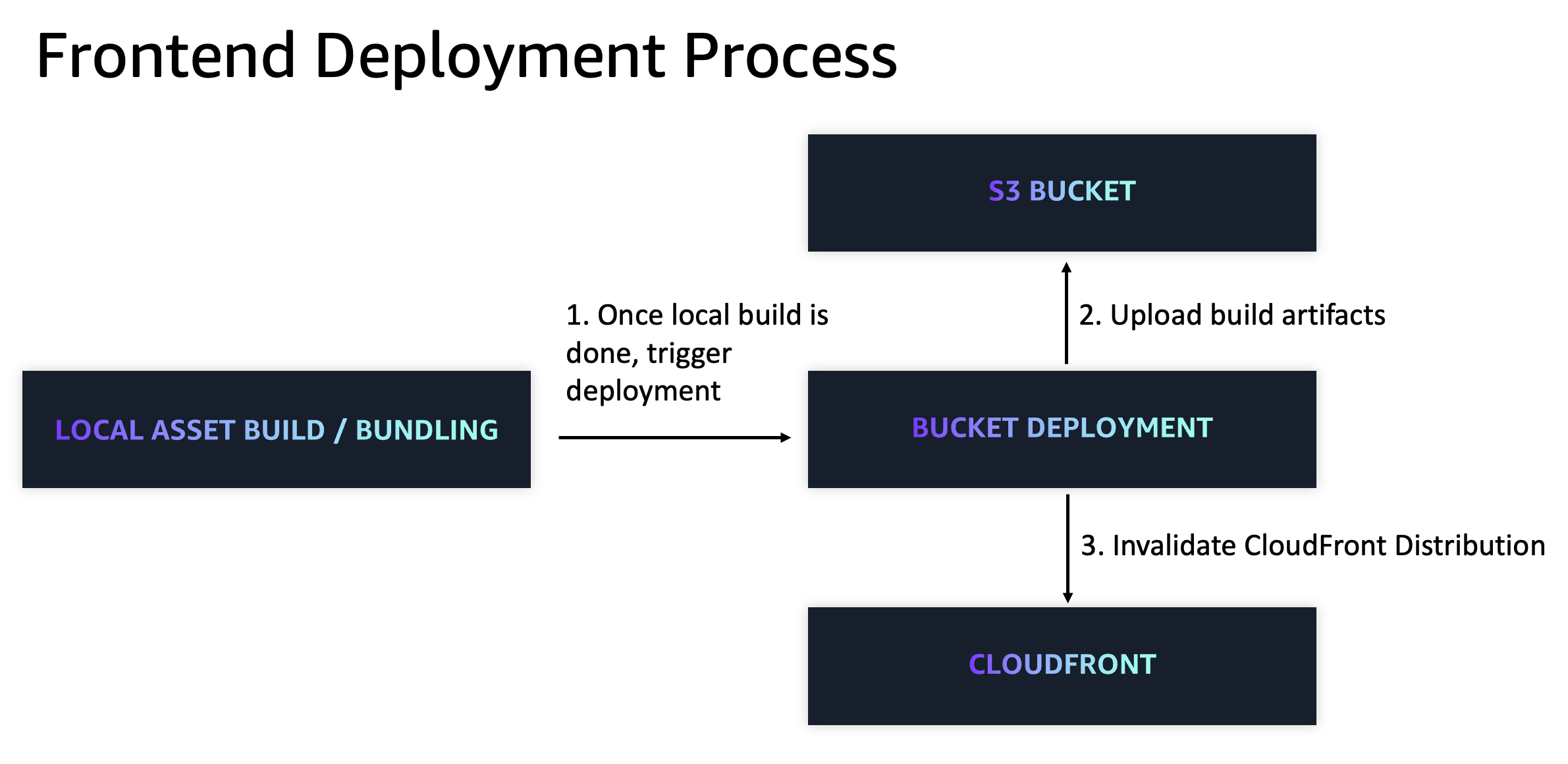

frontend-deployment

The frontend construct comprises complete static website hosting with CloudFront CDN and S3 backend.

Components​

The following are the key components of this L3 Construct:

Storage Layer​

The storage layer uses Amazon S3 as the backend for static assets:

  • S3 Bucket: Encrypted storage with security best practices and public access blocked
  • Bucket Deployment: Automated upload of built assets from local source to S3
  • Asset Management: Handles HTML, CSS, JavaScript, images, and other static files

Content Delivery Network​

CloudFront provides global content delivery with performance optimization:

  • Global Distribution: Edge locations worldwide for fast content delivery
  • Caching Strategy: Intelligent caching with compression and optimization
  • Security Functions: CloudFront functions for security headers and HTTPS enforcement
  • Custom Domains: Optional custom domain support with SSL certificate integration

Build Pipeline​

Automated build and deployment process:

  • Source Processing: Reads from local directory containing frontend source code
  • Build Execution: Runs custom build commands (npm, yarn, webpack, etc.)
  • Asset Optimization: Handles minification, bundling, and asset optimization
  • Deployment: Uploads built artifacts to S3 and invalidates CloudFront cache

Single Page Application Support​

Built-in support for modern SPA frameworks:

  • Routing: Handles client-side routing with 404/403 → index.html redirects
  • Error Pages: Configurable error page handling for SPA-friendly behavior
  • History API: Supports HTML5 History API for clean URLs

Frontend Construct​

The Frontend construct provides:

  • Complete static website hosting infrastructure
  • Automated build and deployment pipeline
  • Global content delivery with CloudFront
  • Security best practices and HTTPS enforcement
  • Optional custom domain and SSL certificate support

Key Features​

  • Source Path: Local directory containing frontend source code
  • Build Commands: Custom build commands (npm install, npm run build, etc.)
  • Custom Domain: Optional domain name with SSL certificate
  • Error Responses: Configurable error page handling (defaults to SPA-friendly)
  • Removal Policy: Resource cleanup behavior for different environments
  • Observability: Enable logging and tracing for monitoring

Usage Example​

import { Frontend } from '@cdklabs/appmod-catalog-blueprints';

// Basic usage
new Frontend(this, 'MyApp', {
  sourcePath: './frontend',
  buildCommands: ['npm install', 'npm run build']
});

// With custom domain
new Frontend(this, 'MyAppWithDomain', {
  sourcePath: './frontend',
  buildCommands: ['npm install', 'npm run build'],
  customDomain: {
    domainName: 'app.example.com',
    certificate: myCertificate
  }
});

// With custom error handling
new Frontend(this, 'MyCustomApp', {
  sourcePath: './frontend',
  buildCommands: ['yarn install', 'yarn build'],
  errorResponses: [
    {
      httpStatus: 404,
      responseHttpStatus: 200,
      responsePagePath: '/index.html'
    }
  ]
});

Configuration Options​

  • sourcePath: Path to frontend source code directory
  • buildCommands: Array of build commands to execute
  • customDomain: Optional custom domain configuration
  • errorResponses: Custom error page handling
  • removalPolicy: Resource cleanup behavior
  • observability: Enable monitoring and logging
